Refresh a JWT Workflow

In this tutorial, you will learn how to create a workflow to refresh a JSON Web Token (JWT) when it expires.

Typically, to continue authenticated testing in Replay, session tokens would need to be manually updated in the request headers.

However, by combining multiple features available in Caido, this process can be automated.

We will use the https://dummyjson.com API to demonstrate the workflow.

According to the https://dummyjson.com/docs/auth documentation, any user credentials returned from the /users endpoint can be used to authenticate with the /auth/login endpoint. By including the expiresInMins parameter, we can simulate a short-lived JWT.

http

POST /auth/login HTTP/1.1
Host: dummyjson.com
Content-Type: application/json
Content-Length: 63

{"username":"emilys","password":"emilyspass","expiresInMins":1}

In the response to this request, an accessToken and refreshToken are returned.

Until the accessToken expires, it can be used to access sensitive user data from the /auth/me endpoint:

http

GET /auth/me HTTP/1.1
Host: dummyjson.com
Connection: close
Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpZCI6MSwidXNlcm5hbWUiOiJlbWlseXMiLCJlbWFpbCI6ImVtaWx5LmpvaG5zb25AeC5kdW1teWpzb24uY29tIiwiZmlyc3ROYW1lIjoiRW1pbHkiLCJsYXN0TmFtZSI6IkpvaG5zb24iLCJnZW5kZXIiOiJmZW1hbGUiLCJpbWFnZSI6Imh0dHBzOi8vZHVtbXlqc29uLmNvbS9pY29uL2VtaWx5cy8xMjgiLCJpYXQiOjE3Nzk2NDM0MDEsImV4cCI6MTc3OTY0MzQ2MX0.t-mV4fcqjvQmRu-I2is_iWV7_1MoJ2h8eVmCQMNhlnk

Once a minute has passed, a 401 Unauthorized response is returned instead of user data with a body notifying the accessToken has expired:

http

{
    "message": "Token Expired!"
}

With the refreshToken that was returned in the initial login response, a new valid accessToken can be obtained from the response to a POST request to the /auth/refresh endpoint:

http

POST /auth/refresh HTTP/1.1
Host: dummyjson.com
Content-Type: application/json
Content-Length: 397

{"refreshToken":"eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJpZCI6MSwidXNlcm5hbWUiOiJlbWlseXMiLCJlbWFpbCI6ImVtaWx5LmpvaG5zb25AeC5kdW1teWpzb24uY29tIiwiZmlyc3ROYW1lIjoiRW1pbHkiLCJsYXN0TmFtZSI6IkpvaG5zb24iLCJnZW5kZXIiOiJmZW1hbGUiLCJpbWFnZSI6Imh0dHBzOi8vZHVtbXlqc29uLmNvbS9pY29uL2VtaWx5cy8xMjgiLCJpYXQiOjE3Nzk2NDA4OTIsImV4cCI6MTc4MjIzMjg5Mn0.kmaBxCM5Sq1ybQFZcspzf1HnJBPpZ9maMwOUjxreoYI","expiresInMins":1}

Creating a Convert Workflow

To begin, navigate to the Workflows interface, select the Convert tab, and click on the + New workflow button.

Next, rename the workflow by typing in the Name input field. You can also provide an optional description of the workflow's functionality by typing in the Description input field.

Nodes and Connections

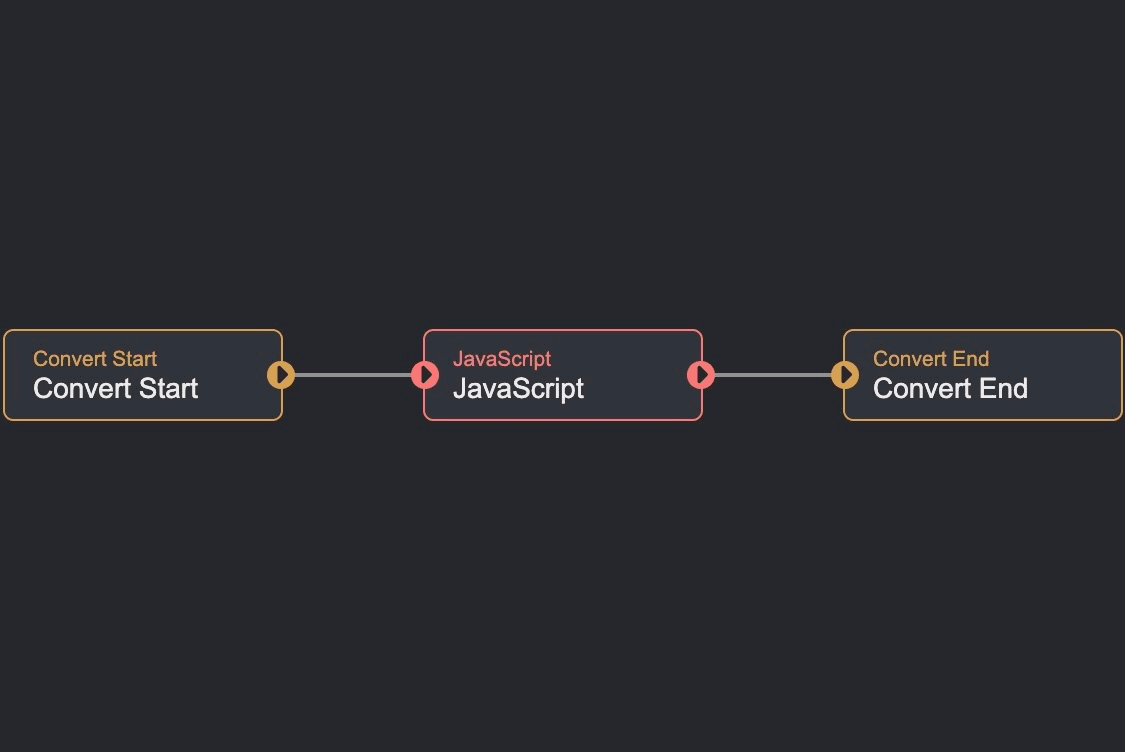

For this workflow, the overall node layout will be:

The Convert Start node outputs $convert_start.data that represents the user-selected data that will undergo conversion (in this case, the accessToken JWT that is the value of the Authorization header in a request).
The Javascript node executes a script on the accessToken and outputs the converted data as $javascript.data.
Once the script in the Javascript node finishes, the workflow will end.

Refreshing the JWT

Click on the Javascript node to access its editor.
Then, click within the coding environment, select all of the existing code, and replace it with the following script:

import { Request as FetchRequest, fetch } from "caido:http";

async function saveTokens(sdk, body) {
  await sdk.env.setVar({
    name: "ACCESS_TOKEN",
    value: body.accessToken,
    secret: false,
    global: true,
  });
  await sdk.env.setVar({
    name: "REFRESH_TOKEN",
    value: body.refreshToken,
    secret: false,
    global: true,
  });
}

async function login(sdk) {
  const resp = await fetch(
    new FetchRequest("https://dummyjson.com/auth/login", {
      method: "POST",
      headers: {
        "Content-Type": "application/json",
      },
      body: JSON.stringify({
        username: "emilys",
        password: "emilyspass",
        expiresInMins: 1,
      }),
    }),
  );
  if (!resp.ok) {
    sdk.console.error(`Login failed: ${resp.status} ${resp.statusText}`);
    sdk.console.error(await resp.text());
    return null;
  }
  const body = await resp.json();
  sdk.console.log(`/auth/login: ${resp.status} ${resp.statusText}`);
  sdk.console.log(JSON.stringify(body));
  await saveTokens(sdk, body);
  return body.accessToken;
}

async function refresh(sdk, refreshToken) {
  const resp = await fetch(
    new FetchRequest("https://dummyjson.com/auth/refresh", {
      method: "POST",
      headers: {
        "Content-Type": "application/json",
      },
      body: JSON.stringify({
        refreshToken,
        expiresInMins: 1,
      }),
    }),
  );
  if (!resp.ok) {
    sdk.console.error(`Refresh failed: ${resp.status} ${resp.statusText}`);
    sdk.console.error(await resp.text());
    return null;
  }
  const body = await resp.json();
  sdk.console.log(`/auth/refresh: ${resp.status} ${resp.statusText}`);
  sdk.console.log(JSON.stringify(body));
  await saveTokens(sdk, body);
  return body.accessToken;
}

export async function run({ data, extra }, sdk) {
  let accessToken = sdk.env.getVar("ACCESS_TOKEN");

  if (!accessToken) {
    const token = await login(sdk);
    return { data: token ?? sdk.asString(data), extra };
  }

  const meResp = await fetch(
    new FetchRequest("https://dummyjson.com/auth/me", {
      method: "GET",
      headers: {
        Authorization: `Bearer ${accessToken}`,
      },
    }),
  );
  sdk.console.log(`/auth/me: ${meResp.status} ${meResp.statusText}`);

  if (meResp.status !== 401) {
    if (!meResp.ok) {
      sdk.console.error(await meResp.text());
    }
    return { data: accessToken, extra };
  }

  const refreshToken = sdk.env.getVar("REFRESH_TOKEN");
  if (refreshToken) {
    const token = await refresh(sdk, refreshToken);
    if (token) {
      return { data: token, extra };
    }
  }

  sdk.console.log("Refresh unavailable or failed; logging in again");
  const token = await login(sdk);
  return { data: token ?? accessToken, extra };
}

Next, ensure the $convert_start.data is referenced as input data.

Once these steps are completed, close the editor window and click on the Save button to update and save the configuration.

Script Breakdown

To be able to send a fetch request, the Request class and the fetch() function are imported from the caido:http module.

import { Request as FetchRequest, fetch } from "caido:http";

The saveTokens() function is defined to set environment variables ACCESS_TOKEN and REFRESH_TOKEN in the global environment.

async function saveTokens(sdk, body) {
  await sdk.env.setVar({
    name: "ACCESS_TOKEN",
    value: body.accessToken,
    secret: false,
    global: true,
  });
  await sdk.env.setVar({
    name: "REFRESH_TOKEN",
    value: body.refreshToken,
    secret: false,
    global: true,
  });
}

The login() function is defined to log in with valid user credentials. If authentication is successful, the accessToken and refreshToken are saved to the global environment using the saveTokens() function.

async function login(sdk) {
  const resp = await fetch(
    new FetchRequest("https://dummyjson.com/auth/login", {
      method: "POST",
      headers: {
        "Content-Type": "application/json",
      },
      body: JSON.stringify({
        username: "emilys",
        password: "emilyspass",
        expiresInMins: 1,
      }),
    }),
  );
  if (!resp.ok) {
    sdk.console.error(`Login failed: ${resp.status} ${resp.statusText}`);
    sdk.console.error(await resp.text());
    return null;
  }
  const body = await resp.json();
  sdk.console.log(`/auth/login: ${resp.status} ${resp.statusText}`);
  sdk.console.log(JSON.stringify(body));
  await saveTokens(sdk, body);
  return body.accessToken;
}

The refresh() function is defined to refresh the accessToken using the refreshToken that was saved to the global environment. If the refresh is successful, the accessToken is saved to the global environment using the saveTokens() function.

async function refresh(sdk, refreshToken) {
  const resp = await fetch(
    new FetchRequest("https://dummyjson.com/auth/refresh", {
      method: "POST",
      headers: {
        "Content-Type": "application/json",
      },
      body: JSON.stringify({
        refreshToken,
        expiresInMins: 1,
      }),
    }),
  );
  if (!resp.ok) {
    sdk.console.error(`Refresh failed: ${resp.status} ${resp.statusText}`);
    sdk.console.error(await resp.text());
    return null;
  }
  const body = await resp.json();
  sdk.console.log(`/auth/refresh: ${resp.status} ${resp.statusText}`);
  sdk.console.log(JSON.stringify(body));
  await saveTokens(sdk, body);
  return body.accessToken;
}

The run() function is defined to execute the workflow. If the accessToken is not set, the login() function is called to log in with valid user credentials. If the accessToken is set, the refresh() function is called to refresh the accessToken using the refreshToken that was saved to the global environment. If the refresh is successful, the accessToken is saved to the global environment using the saveTokens() function.

export async function run({ data, extra }, sdk) {
  let accessToken = sdk.env.getVar("ACCESS_TOKEN");

  if (!accessToken) {
    const token = await login(sdk);
    return { data: token ?? sdk.asString(data), extra };
  }

  const meResp = await fetch(
    new FetchRequest("https://dummyjson.com/auth/me", {
      method: "GET",
      headers: {
        Authorization: `Bearer ${accessToken}`,
      },
    }),
  );
  sdk.console.log(`/auth/me: ${meResp.status} ${meResp.statusText}`);

  if (meResp.status !== 401) {
    if (!meResp.ok) {
      sdk.console.error(await meResp.text());
    }
    return { data: accessToken, extra };
  }

  const refreshToken = sdk.env.getVar("REFRESH_TOKEN");
  if (refreshToken) {
    const token = await refresh(sdk, refreshToken);
    if (token) {
      return { data: token, extra };
    }
  }

  sdk.console.log("Refresh unavailable or failed; logging in again");
  const token = await login(sdk);
  return { data: token ?? accessToken, extra };
}

Testing the Workflow

To test the workflow:

Send the following request via Replay:

http

POST /auth/login HTTP/1.1
Host: dummyjson.com
Content-Type: application/json
Content-Length: 63

{"username":"emilys","password":"emilyspass","expiresInMins":1}

Copy the value of the accessToken from the response.
Send the following request via Replay using the accessToken you copied in the previous step as the value of the Authorization header:

http

GET /auth/me HTTP/1.1
Host: dummyjson.com
Connection: close
Authorization: Bearer <accessToken>

After one minute has passed send the previous request again and notice that a 401 Unauthorized response is returned.

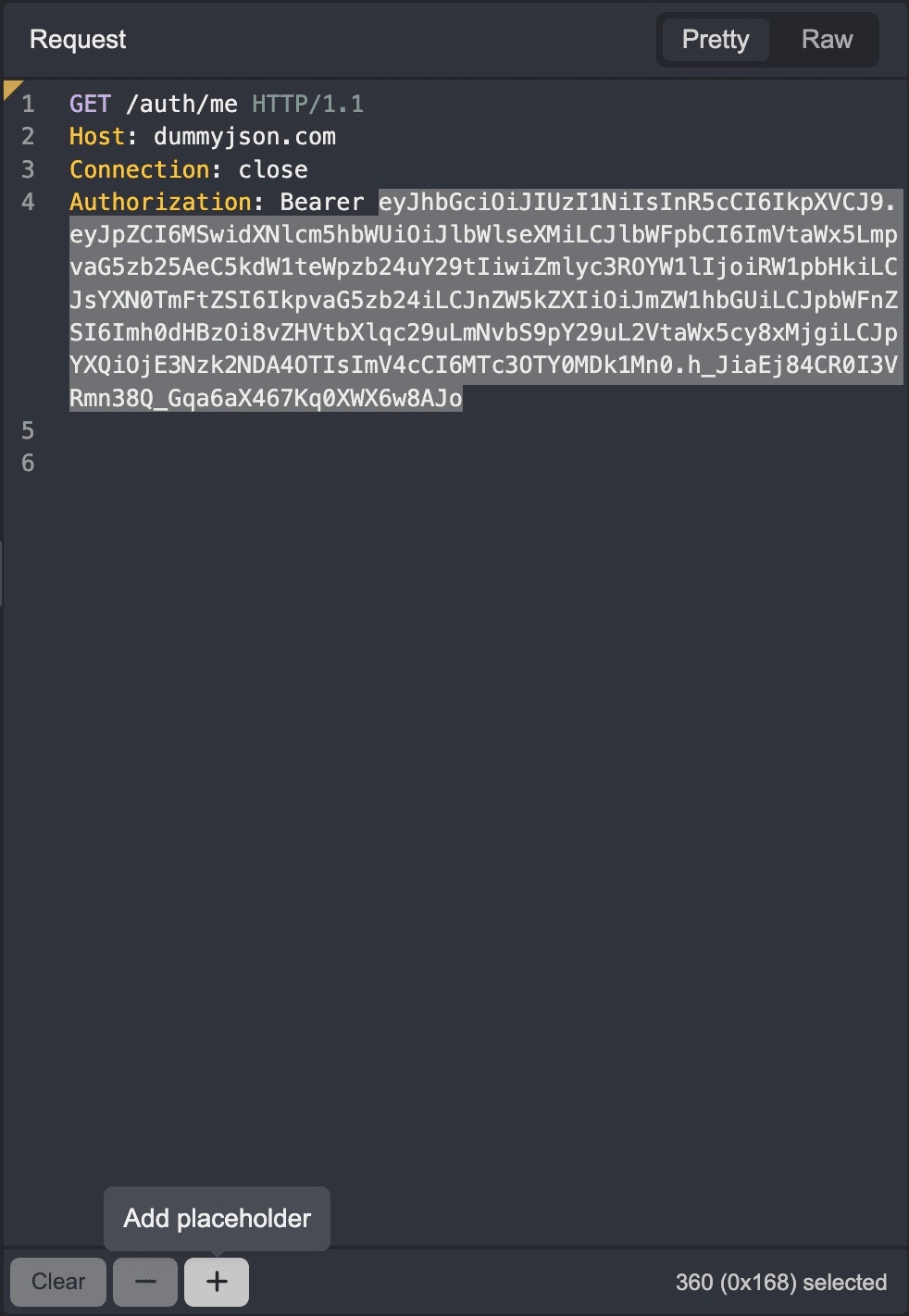

Click, hold, and drag over the accessToken value of the Authorization header and click the + button to add it as a placeholder.

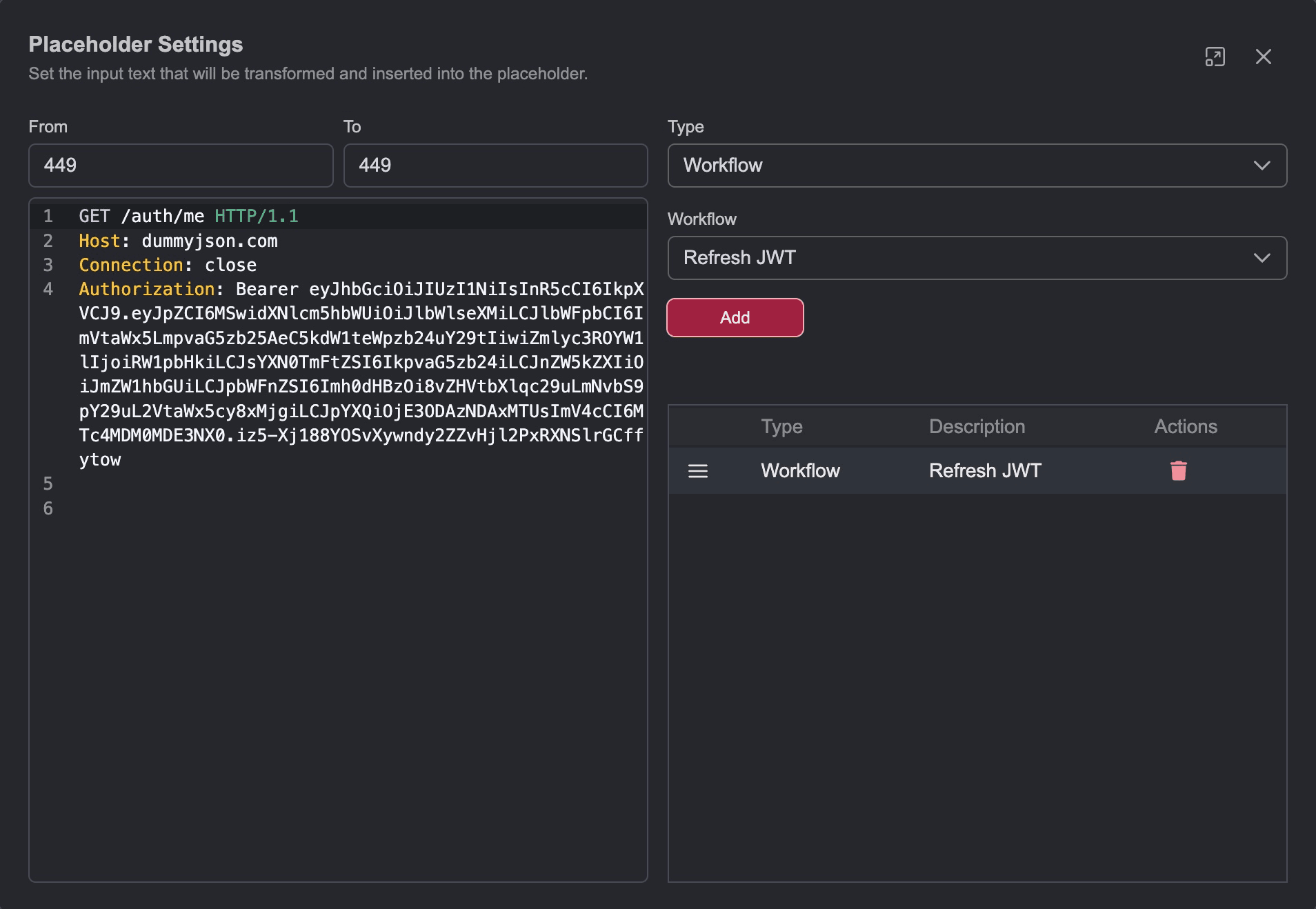

Then, click on the associated edit button of the placeholder to open the Placeholder Settings window.

Click on the Type drop-down menu and select Workflow.
Click on the Workflow drop-down menu and select the workflow from the list.
Click on the Add button to save the configuration.

Close the settings window and send the request.
